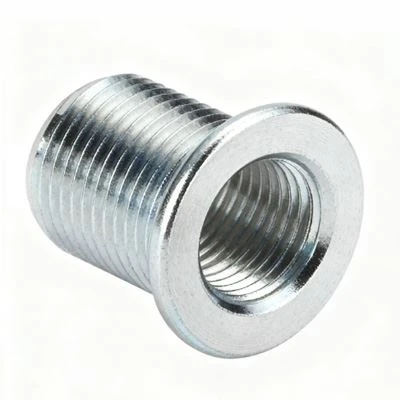

Dig Muag Threaded Inserts Rau Hlau
Qhov hnyav: 0.5g-500kg
Dimensional kam rau ua: ± 0.1mm
Qhov muag tsis pom threaded inserts rau hlau yog fastening daws tsim tshwj xeeb rau cov ntaub ntawv hlau. Nws txhim kho kev sib txuas kev ua tau zoo los ntawm embedding siab - lub zog sab hauv xov hauv qhov muag tsis pom. Lub zog tensile ntawm qhov tsim no tuaj yeem tshaj 1100 MPa. Nws tuaj yeem ua kom cov xov load-cov kabmob muaj peev xwm ntawm cov hlau mos ob peb zaug. Nws ib leeg -sided mounting feature yog qhov ua tau zoo heev. Tsis tas yuav tsum kov lub nraub qaum ntawm lub workpiece thaum lub sijhawm teeb tsa. Qhov no nce kev sib dhos ua haujlwm ntawm kwv yees li 70%. Tshwj xeeb tshaj yog tsim rau kaw cov qauv xws li lub thawv thiab thav ntawv. Nws muaj qhov zoo tshaj plaws nyob rau hauv - qhov chaw tsim kho thiab ua haujlwm tau zoo.
Cov xov ntxig kuj tseem txuas ntxiv txoj sia ntawm xov. Raws li kev hnav- tiv taus bushing, nws tuaj yeem ua rau muaj qhov rov ua dua tshiab thiab sib dhos los ntawm kaum lub sij hawm mus rau ntau dua 50 zaug. Qhov no zoo kawg nkaus ua tau raws li cov kev xav tau ntawm cov khoom siv uas yuav tsum tau saib xyuas tsis tu ncua. Hais txog kev tiv thaiv corrosion, siab - cov ntaub ntawv zoo stainless hlau tuaj yeem dhau 500- teev cov qauv ntsev tshuaj tsuag. Qhov no ua kom muaj kev ruaj ntseg ntev hauv qhov chaw ntub dej thiab corrosive.
Parameter
JOYEAR muab cov neeg siv khoom thoob plaws ntiaj teb siab - ntim, muaj txiaj ntsig zoo rau cov khoom lag luam. Peb tsim peb cov khoom siv hlau nrog kev txawj ntse. Peb pab neeg txawj ntse yuav raug tsim kom muaj qhov tseeb uas ua tau raws li koj xav tau yog tias koj xa koj cov ntaub ntawv tsim los rau peb, txawm tias lawv yog digital.ntawv los yog prototypes.
| Khoom / Parameter | Stainless hlau | Hlau alloy | tooj dag |
|---|---|---|---|
| Tensile zog | Ntau dua lossis sib npaug li 700 MPa | Ntau dua lossis sib npaug li 1100 MPa | Kwv yees li . 400 MPa |
| Hom Hardness | HRB 85 - 95 | HRC 32 - 39 | HRB 60 - 80 |
| Corrosion Resistance | ⭐⭐⭐ | ⭐ | ⭐⭐⭐ |
| Hluav taws xob conductivity | ⭐ | ⭐ | ⭐⭐⭐ |
| Qhov ceev (g / cm³) | 7.9 | 7.8 | 8.5 |
★ Peb cov khoom muaj xws li:
►Khoom siv:Carbon steel / Mild steel / Cov qauv hlau / Stainless hlau / Aluminium / tooj liab, thiab lwm yam.
►Daim ntawv:Daim ntawv / Profiles / Tubes / Round bars / Flat tuav / Square tuav, thiab lwm yam.

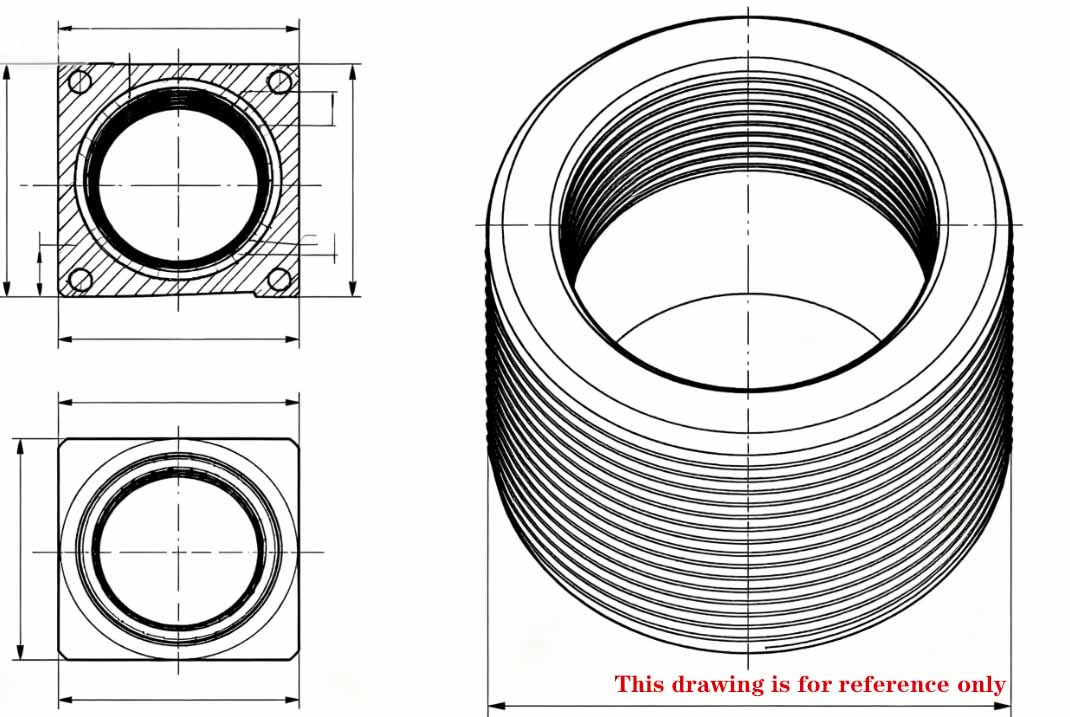

Drawing Design & Paub meej
Tau txais cov duab kos los ntawm cov neeg siv khoom lossis tsim cov duab kos raws li lawv cov qauv lossis cov qauv tshwj xeeb.
Ob tog ua pov thawj rau cov duab kos, cov khoom siv raw, kev kho saum npoo, thiab lwm yam ntsiab lus.
Qhov zoo
Strong thread kho thiab standardization muaj peev xwm
Thaum cov xov ntawm cov khoom siv tsis zoo vim hnav, stripping lossis machining yuam kev, qhov muag tsis pom qhov xov ntxig yog qhov kev kho zoo tshaj plaws.
Nws tso cai rau koj siv tus qauv me me laum me ntsis (piv txwv li, kho qhov puas M6
threaded qhov, tsuas yog laum ib lub 8.4mm txoj kab uas hla hauv qab lub qhov) thiab ces ntxig rau cov xov insert kom tau ib tug tshiab, txawm muaj zog, standard internal thread.
Qhov no txuag tau ntau yam khoom siab -tus nqi uas tej zaum yuav raug muab pov tseg, txo cov nqi kho rau 10%-20% ntawm tus nqi ntawm cov khoom tshiab.
Tso cai rau ntau dua ntawm kev rov ua dua
Cov xov tapping ncaj qha rau hauv cov ntaub ntawv muag muag tsuas yog tuaj yeem tiv thaiv rov qab disassembly thiab sib dhos ntawm bolts 10-20 zaug ua ntej lawv plam. Raws li ib qho nyuaj bushing, lub qhov muag tsis pom qhov ntsia hlau lub tes tsho tuaj yeem nce tus naj npawb ntawm disassembly thiab sib dhos lub sij hawm rau ntau tshaj 50 zaug.
Piv txwv li, ntawm cov khoom siv vaj huam sib luag lossis cov npog uas yuav tsum tau qhib thiab kaw ntau zaus rau kev saib xyuas, kev siv lub tes tsho xov tuaj yeem ua kom ntseeg tau tias cov xov muaj kev ntseeg siab thiab ruaj khov thoob plaws hauv lub neej ntawm cov cuab yeej siv, txhim kho kev ruaj ntseg ntawm cov khoom thiab cov neeg siv kev paub.
Zoo heev thermal tswj
Thaum muaj kev hloov pauv kub heev, qhov muag tsis pom qhov xov ntxig tuaj yeem txo qhov kev ntxhov siab los ntawm qhov sib txawv ntawm thermal expansion coefficients ntawm cov khoom sib txawv. Piv txwv li, stainless hlau muaj ib coefficient ntawm thermal expansion ntawm txog 17 x 10⁻⁶ ib℃Celsius, thaum txhuas alloys muaj ib coefficient ntawm thermal expansion ntawm txog 23 x 10⁻⁶.
Thaum ob qhov sib txuam, lub tes tsho xov ua haujlwm tsis zoo uas tuaj yeem nqus tau feem ntau ntawm cov kev ntxhov siab sab hauv los ntawm qhov sib txawv ntawm qhov kub thiab txias (xws li kev hloov pauv ntau dua 100 degree) thiab tiv thaiv cov xov qhov los ntawm kev tawg vim thermal qaug zog, uas yog qhov tseem ceeb rau lub cav qhov chaw lossis cov pwm ua haujlwm hauv siab - qhov kub thiab txias.
Kev them nyiaj siab ntev zoo heev
Thaum lub sij hawm ua los yog kho, tej zaum yuav ua yuam kev nyob rau hauv lub hauv qab lub qhov ntev. Qhov muag tsis pom qhov xov inserts muaj qhov hloov tau zoo. Piv txwv li, txawm tias lub qhov hauv qab muaj qhov sib txawv ntawm ± 0.1 hli, lub tes tsho nthuav dav tuaj yeem sau qhov sib txawv los ntawm deforming nws tus kheej.
Qhov no ua kom ntseeg tau tias lub zog torque tseem nyob siab dua 80% ntawm cov qauv tsim. Cov yam ntxwv no txo cov kev ua kom raug thiab txhim kho tus nqi tsim nyog. Nws yog tshwj xeeb tshaj yog haum rau batch manufacturing thiab ceev ceev.
Vim li cas thiaj xaiv peb
Zoo kawg nkaus kho threaded qhov
Kho cov xov puas. Tsis muaj txheej txheem nyuaj. Yooj yim rov qab txuas lub zog.
Kev tiv thaiv- kev vibration
Cim xauv tsim. Zoo tiv thaiv kev vibration. Haum rau kev ua haujlwm hnyav.
Xov durability
Ua raws li hnav- tiv taus bushing. Disperse bolt kev nyuaj siab. Ua tau raws li kev tu ncua sij hawm.
Kev txhim kho zoo
Tsuas yog ib sab ntawm kev ua haujlwm yuav tsum tau ua. Tsis tas yuav tig lub workpiece dua. Kev ua haujlwm tau zoo heev.
Nqe & Order
Muab cov lus tsocai, xyuas kom meej tias qhov kev txiav txim kom muaj nuj nqis yog qhov tseeb, thiab suav nrog tag nrho cov ntsiab lus tseem ceeb.
Xws li cov xwm txheej ntawm kev lag luam, cov nqe lus ntawm kev them nyiaj, hom ntim khoom, thiab lwm yam.
Qauv pom zoo
Xyuas kom tseeb tias koj cov qauv thawj zaug phim cov duab kos.
Tom qab kev pom zoo sab hauv, xa mus rau tus neeg siv khoom kom pom zoo.
Kev tsim khoom & Shipping
Ua raws li cov duab kos thiab cov qauv raws nraim thaum tsim cov khoom.
Nws tau ua tib zoo ntim thiab xa mus rau cov neeg siv khoom tom qab kev tshuaj xyuas zaum kawg.
Xaus
JOYEAR yog lub chaw tsim khoom lag luam muaj txiaj ntsig nrog nees nkaum xyoo ntawm kev lag luam kev lag luam. Peb tau tsim lub koob npe nrov thiab kev txawj ntse los ntawm kev txhim khu kev qha, superior ntau lawm. Peb pab pawg muab cov kev daws teeb meem uas raug kho kom tau raws li koj xav tau. Peb ua hauj lwm ze nrog koj los ua ib qho kev cai tsim ib qho kev muaj tiag. Peb kuj muab kev koom ua ke thiab pom zoo cov khoom lag luam raws li koj daim ntawv thov kom ua tiav qhov kev yuav khoom thiab kev ua haujlwm zoo.
