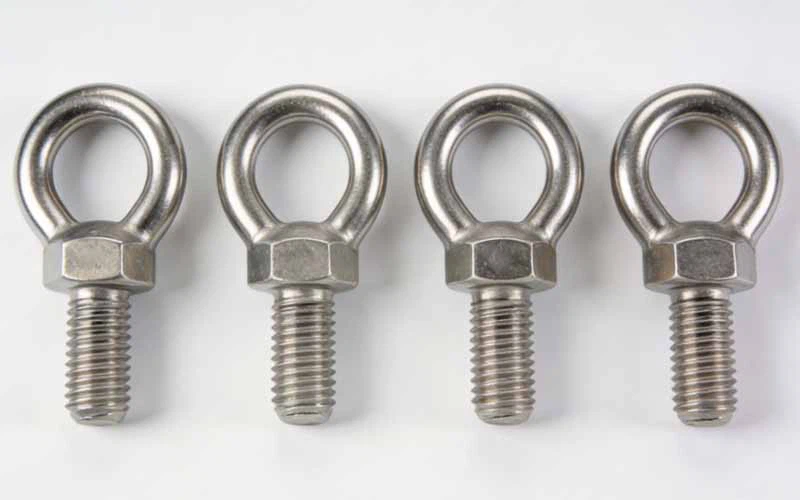

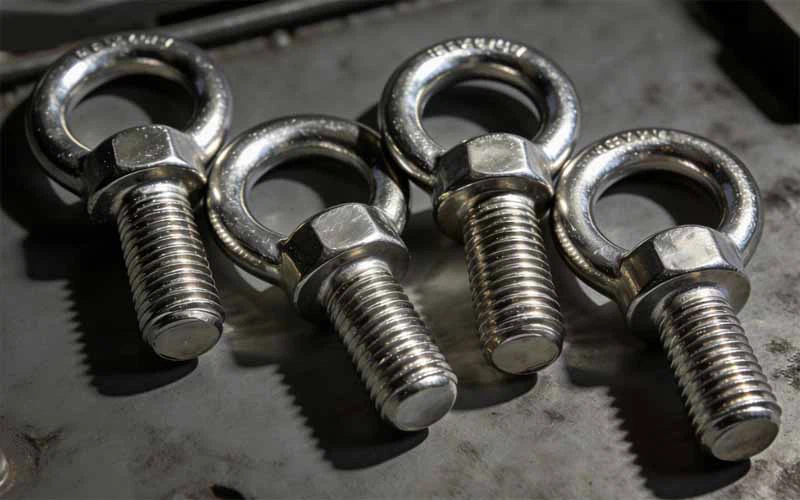

Heavy Duty Stainless Hlau Qhov Muag Bolts
Qhov hnyav: 0.5g-500kg
Dimensional kam rau ua: ± 0.2mm
Heavy luag hauj lwm stainless hlau qhov muag bolts yog tsim rau hnyav industrial puag ncig. Nws siv AISI 304 lossis 316 stainless hlau core khoom. Cov ntaub ntawv muaj zog. Qhov no tso cai rau nws kom muaj kev tiv thaiv corrosion rau ntau tshaj kaum xyoo hauv cov av ntub lossis tshuaj lom neeg. Nws cov khoom siv thauj khoom-cov kabmob muaj peev xwm zoo heev. Piv txwv li, kev nyab xeeb ua haujlwm ntawm tus qauv M20 specification khoom tuaj yeem ncav cuag 2.6 tons. Qhov kev nyab xeeb yog siab li 4 txog 1. Qhov no muab kev tiv thaiv kev ruaj ntseg rau cov ntawv thov hnyav{13}}.
Cov ntsia liaj qhov rooj no muaj qhov dav ntawm kev ua haujlwm kub. Nws tuaj yeem ua haujlwm ruaj khov ntawm qhov kub ntawm 50 ° C thiab 250 ° C. Yog li nws yog qhov tsim nyog rau ntau qhov xwm txheej los ntawm cov khoom siv tub yees mus rau qhov siab - qhov chaw ua haujlwm kub. Nws yuav tsum raug sau tseg tias nws lub peev xwm thauj khoom hloov pauv nrog lub kaum ntse ntse. Thaum lub lifting kev taw qhia yog 90 degrees rau lub nplhaib ntsia liaj qhov rooj, qhov kev nyab xeeb ua hauj lwm load yuav raug txo kom txog li 30% ntawm lub xeev ntsug. Precise mechanical Planning yog tsim nyog thaum lub sij hawm installation. Khoom specifications npog series ntawm M8 rau M36. Qhov no suav nrog ntau yam kev xav tau los ntawm lub teeb ruaj khov mus rau kev nqa hnyav.
Parameter
JOYEAR muab cov neeg siv khoom thoob plaws ntiaj teb siab - ntim, muaj txiaj ntsig zoo rau cov khoom lag luam. Peb tsim peb cov khoom siv hlau nrog kev txawj ntse. Peb pab neeg txawj ntse yuav raug tsim kom muaj qhov tseeb uas ua tau raws li koj cov kev xav tau yog tias koj xa koj cov ntaub ntawv tsim los rau peb, txawm tias lawv yog cov ntawv sau lossis cov qauv.
|
Xov Tolerance |
± 0.2 hli |
|
Metric Xov |
M2 - M12 |
|
Kev Pabcuam Kub |
Tsawg dua lossis sib npaug li 1800 degree |
|
Kev kho saum npoo |
|
|
Qhov hnyav |
0.5g - 500kg |
Drawing Design & Paub meej
Tau txais cov duab kos los ntawm cov neeg siv khoom lossis tsim cov duab kos raws li lawv cov kev qhia tshwj xeeb lossis cov qauv.
Cov duab kos, cov khoom siv raw, kev kho deg, thiab lwm yam ntsiab lus tau lees paub los ntawm ob tog.
Qhov zoo
billboard structural anchoring
Loj sab nraum zoov steel qauv billboards tiv taus cua loj loj nyob rau sab cua. Thaum ib daim ntawv teev npe nrog thaj tsam ntawm 100 square metres ntsib ib Qeb 12 typhoon (cua siab yog hais txog 1.1 kPa), cov nodes txuas cov hlau ncej thiab lub hauv paus yuav tsum tau tiv thaiv tag nrho tensile quab yuam ntawm txog 11 tons. Kev siv ntau yam M24 bolts (ib leeg SWL 3.8 tons) rau dispersed anchoring yog tus yuam sij rau cov qauv cua tsis kam.
Lub tsev hoisting txuas
Hauv cov tsev prefabricated, ib chav tsev precast pob zeb tuaj yeem hnyav txog li 15 tons. Hnyav -lub luag haujlwm eyebolts yog ua ntej-embedded ntawm plaub lub ces kaum ntawm nws cov qauv steel ncej raws li lub zog nkaus xwb- bearing point rau lifting.
Lub SWL ntawm txhua M36 ntsia liaj qhov rooj tshaj 8 tons. Plaub lub ntsiab lus ua haujlwm ua ke kom ua tiav qhov kev nqa, kev thauj mus los thiab kev teeb tsa ntawm lub module.
Safety anchorage cov ntsiab lus
Thaum ua kev saib xyuas nyob rau sab hauv ntawm lub thawv girder ntawm tus ntoo khaub lig- tus choj tus dej, cov neeg ua haujlwm yuav tsum ua haujlwm ntawm lub pob tawb txawb. Lub pob tawb dai txuas nrog lub preset M20 stainless hlau eyebolts (SWL 2.6 tons) nyob rau sab saum toj ntawm lub thawv beam los ntawm cov hlua hlau.
Qhov taw tes thauj tog rau nkoj yog tsim los tiv thaiv 4 npaug ntawm qhov cuam tshuam thauj khoom (kwv yees li 10.4 tons) txhawm rau tiv thaiv lub pob tawb los ntawm kev poob. Nws cov khoom siv 316 tuaj yeem tiv thaiv corrosion los ntawm cov dej condensation hauv lub thawv choj, kom ntseeg tau tias cov ntsiab lus thauj tog rau nkoj tuaj yeem siv nyab xeeb txhua lub sijhawm hauv 100 xyoo tsim lub neej ntawm tus choj.
Openable skylight pob khawm puag
Nyob rau hauv lub teeb pom kev loj loj nyob rau hauv chaw ntau pob lossis tsev cia puav pheej, lub sash hnyav 3 tons txhua thiab tig rau hnyav - lub luag haujlwm hinges. Lub hauv paus kev nyuaj siab ntawm pob khawm yog anched rau lub ntsiab steel qauv siv M24 stainless hlau bolts (SWL 3.8 tons). Hauv kev sim simulating ib zaug -nyob rau hauv-50-xyoo cua load (cua siab txog li 0.8 kPa), qhov taw qhia kev sib txuas yuav tsum muaj peev xwm tiv taus ntau tshaj 2.5 tons ntawm qhov ntxiv rub quab yuam tsim los ntawm lub qhov rais sash kom ntseeg tau tias lub skylight yuav tsis deform lossis detach nyob rau hauv huab cua phem thiab muaj kev nyab xeeb thiab txhim khu kev qha.
vim li cas xaiv peb
Ultra - siab mechanical zog
- Nws muaj zog tensile thiab yield zog. Ua piv txwv M20 specification, nws qhov kev nyab xeeb ua haujlwm tuaj yeem ncav cuag 2.6 tons, thiab qhov kev nyab xeeb feem ntau yog 4: 1 lossis 5: 1, muab kev lees paub ruaj khov rau hnyav - lub luag haujlwm hoisting thiab kho.
Cov cai tswj kev nyab xeeb meej
- Ua raws li cov qauv kev lag luam tseem ceeb xws li ASTM A489. Txhua qhov kev qhia tshwj xeeb muaj qhov pom tseeb ntawm kev ua haujlwm ruaj ntseg, uas ua rau muaj kev suav tseeb thiab kev nyab xeeb siv los ntawm cov kws tsim khoom, thiab tiv thaiv kev pheej hmoo ntawm overloading.
Ib qho yooj yim thiab siv tau yooj yim installation
- Txheem metric lossis imperial xov tsim, sib xws nrog cov cuab yeej siv. Nws tuaj yeem raug ntsia hlau ncaj qha rau hauv prefabricated threaded qhov los yog siv cov txiv ntoo kom yooj yim rau kev teeb tsa thiab txhim kho kev tsim kho.
Zoo heev versatility
- Muaj nyob rau hauv ntau yam kev qhia tshwj xeeb los ntawm M8 txog M36, lawv tuaj yeem ua tau raws li qhov xav tau sib txawv ntawm cov khoom siv kho kom haum rau kev nqa cov qauv hnyav. Nws tus qauv tsim ua rau nws yog ib qho khoom siv thoob ntiaj teb thoob plaws kev lag luam.
Nqe & Order
Xyuas kom tseeb tias qhov kev txiav txim kom muaj nuj nqis yog qhov tseeb, muab cov lus tsocai, thiab suav nrog tag nrho cov ntaub ntawv tsim nyog.
Xws li cov xwm txheej ntawm kev them nyiaj, cov nqe lus ntawm kev lag luam, hom ntim khoom, thiab lwm yam.
Qauv pom zoo
Ua ntej prototypes thiab xyuas tias lawv sib haum nrog cov duab kos.
Xa mus rau tus neeg siv khoom kom pom zoo tom qab kev pom zoo sab hauv.
Kev tsim khoom & Shipping
Thaum ua cov khoom, precisely ua raws li tus thawj drawings thiab cov qauv.
Nws tau ua tib zoo ntim thiab xa mus rau cov neeg siv khoom tom qab kev tshuaj xyuas zaum kawg.
Cim npe nrov: Stainless hlau qhov muag bolts, Tuam Tshoj hnyav luag stainless hlau qhov muag bolts manufacturers, lwm tus neeg, Hoobkas
