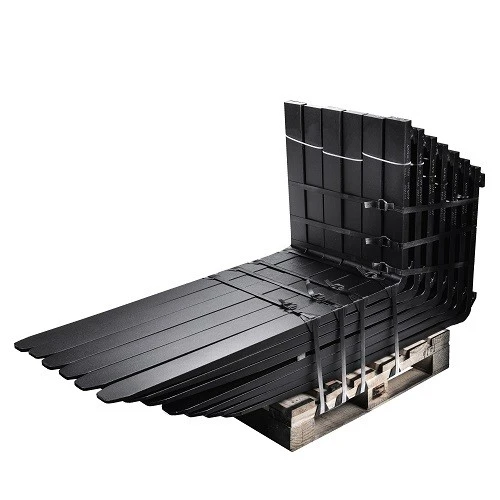

200x60x1800 Ncej Mounted Forks

Qhov hnyav ntawm ib qho 200x60x1800 ncej-mounted diav rawg yog 219 kg. Tus ntoo khaub lig- ntu yog 200 hli dav, 60 hli tuab, thiab 1.8 meters ntev. A 30-degree daim duab peb sab spline yog ua tiav rau hauv lub qhov hauv ntawm lub tes tsho ncej, uas yog hauv av nrog rau sab nraud spline ntawm lub forklift mounting ncej. Qhov cuam tshuam yog 0.04 txog 0.06 hli. Torque thiab axial quab yuam yog kis los ntawm ib sab ntawm lub spline yam tsis muaj kev xauv lub txiv ntseej lossis cov npoo, tshem tawm tag nrho kev co loosening. Lub diav rawg saum npoo yog kho nrog kev sib xyaw ntawm ion nitriding thiab qis-kub sulfurization. 0.2 hli tuab Fe2N hardened txheej thiab FeS khoom lubricating zaj duab xis yog tsim rau saum npoo. Lub hardness yog siab li 900HV thiab kev sib txhuam coefficient qis dua 0.06. Nws tsis yooj yim rau kev ua raws li oxide nplai thaum thawb lub pob liab kub hlau.





Sab pem hauv ntej ntawm lub diav rawg taub hau yog overlayed nrog cobalt -raws li superalloy, thiab ua hauj lwm kub tuaj yeem ncav cuag 850 degrees. Nrog rau cov cua txias - cua txias, nws tuaj yeem tso ncaj qha rau hauv lub forging dawb paug tsuas yog tawm ntawm lub qhov cub kom hloov kub. Qhov kawg ntawm lub tes tsho ncej yog kev koom ua ke nrog cov khoom siv spline coj qhia. Thaum lub spline backlash tshaj 0.2 hli, qhov taw qhia kev sojntsuam protrudes los ntawm lub ntsej muag kawg, ua kom lub diav rawg hloov. Lub deflection-load QR code ntawm txhua rab rawg yog laser-engraved rau sab hauv ntawm rab rawg ceg. Luam theej duab nws nrog koj lub xov tooj ntawm tes los xyuas qhov kev nyab xeeb load tus nqi sib xws rau txhua qhov tob tob.





Qhov saum npoo yog coated nrog ceramic aluminium hmoov tshav kub-cov xim resistant, silver grey kom muaj kev cuam tshuam cov hluav taws xob hluav taws xob. Ua ntej tawm hauv lub Hoobkas, spline crush thiab thermal shock test yog ua nyob rau hauv 1.4 npaug ntawm qhov ntsuas load. Lub diav rawg yog hloov mus rau 4A- theem ncej mounting system. Thaum lub sij hawm installation, tsuas yog thawb lub diav rawg mus rau hauv lub ncej kawg spline mus rau qhov txwv qhov chaw. Siv lub hydraulic ruber los pab hauv disassembly thiab ejection. Chav tsev qhov hnyav ntawm 219kg yog txuam nrog forged steel lifting lugs ntawm ob qho kawg ntawm lub tes tsho ncej, uas yuav tsum tau hloov los ntawm ib tug tib neeg siv ib tug tshuav nyiaj li cas crane. Nws yog tshwj xeeb yog siv rau kub tuag forging xovxwm tawm, billet kub noj thiab siab -kub alloy forging ntau lawm kab.
